INSTRUMENTATION SPECIFICATION

MODEL	PIXL
PRODUCT CODE	PIX-001
WARRANTY	1 Year
MONITOR	21.5″, 1080p Full HD, LED-Backlit LCD Monitor Edge-to-edge glass display with anti-glare
INTERNAL PC SPEC	2.30GHz Intel 6th Gen Dual Core i3-6100U Processor -20 ~ 60 °C extend temperature operating 2.5” 32GB MLC SSD (0~70°C) – Can be upgraded to: 128GB / 256GB / 512GB 4GB DDR3 Memory DC-PWR-MIOe – 9V 36V power module
POWER	240VAC at 3 Amps, 100-240VAC Compatible
SIZE	Depth: 730mm Width: 640mm Height: 805mm
WEIGHT	100kg
CAMERA	5MP (2448 x 2048) Resolution USB 3.0 2/3” Sensor 16mm Autofocus Liquid Lens
TOP LIGHT	1x White Channel & 5x Fluorescence Channels: UV 1 (380-390 nm) UV 2 (400-410 nm) Blue (465-485 nm) Cyan (490-510 nm) Green (520-540 nm)

PINNING TRANSFER EFFICIENCY	Agar to agar: 99.78% Motors accurate to 50 microns
AVERAGE PINNING PRESSURE	<9/mm
CONTAMINATION RATE	<0.03%
PICKING TIPS	Over 33,000 sterile, disposable tips in a single, low-cost PickupLine.
SOURCE PLATE TYPES	90mm and 150mm Petri dishes. OmniTray SBS rectangular plate 120mm Square plate.
TARGET PLATE TYPES	OmniTray rectangular plate with pinning densities ranging from 96 – 1536. 96 and 384 multiwell plates. 96 and 384 deepwell plates. 96 and 384 PCR plates.
AGAR HEIGHT DETECTION	Ultrasonic agar height sensor. Magnetic contact surface detection on every pick.

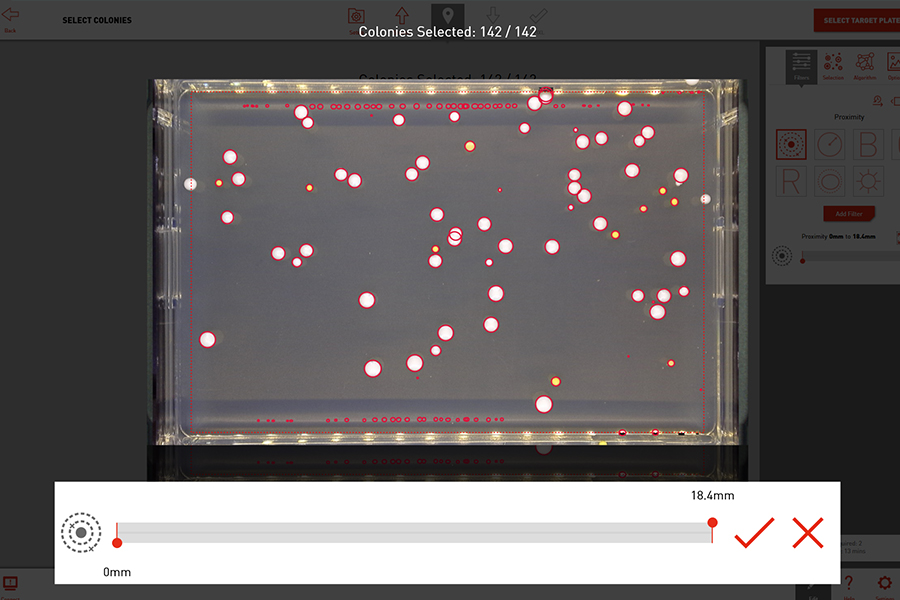

COLONY FILTERING PARAMETERS	Size, colour, shape, proximity, and intensity.

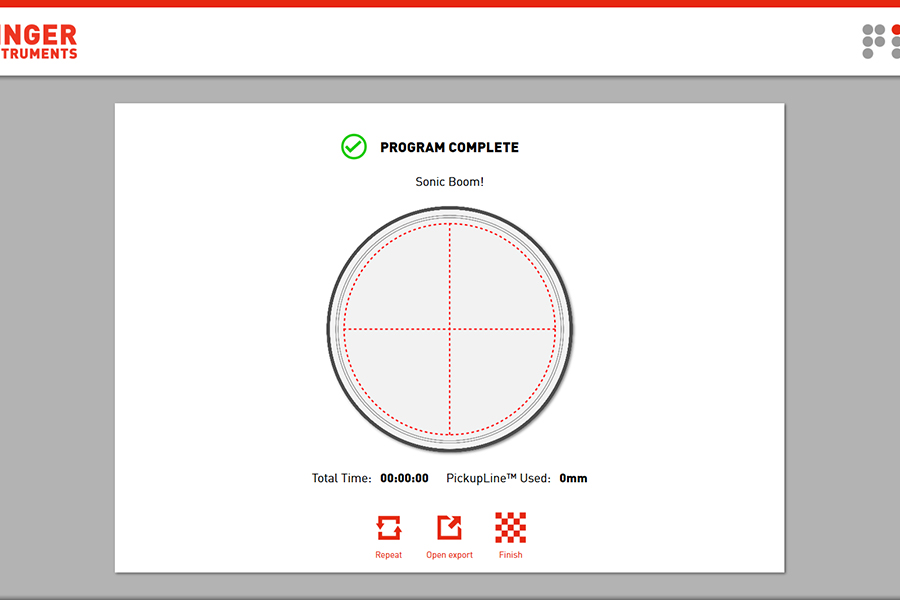

DATA OUTPUT	.CSV file export containing phenotypic data for each colony with original and annotated plate images for complete data traceability.
AVAILABLE DOWNLOADS	PIXL Efficiency Report PIXL Pinning Pressure Report

Capture high-resolution colony images using PIXL’s scientific grade, colour camera.

Sustain close to 100% picking accuracy with precision agar surface detection on every pick.
