Jay Yang
Singer Instruments, Roadwater, TA23 0RE.


Chemical genetics is the study of genes through small-molecule perturbation. Chemical genetic screening is a phenotypic screening methodology that systematically tests the efficacy of thousands of small molecules simultaneously.  It is superior to target-based screening methodology for drug discovery because chemical genetic screening is unbiased and screens chemicals directly in complex cellular environments. Therefore, chemical genetic screening is an efficient way to discover and validate new drugable targets and identify potentially efficacious therapeutics.

The Theory Behind Chemical Genetic Screening

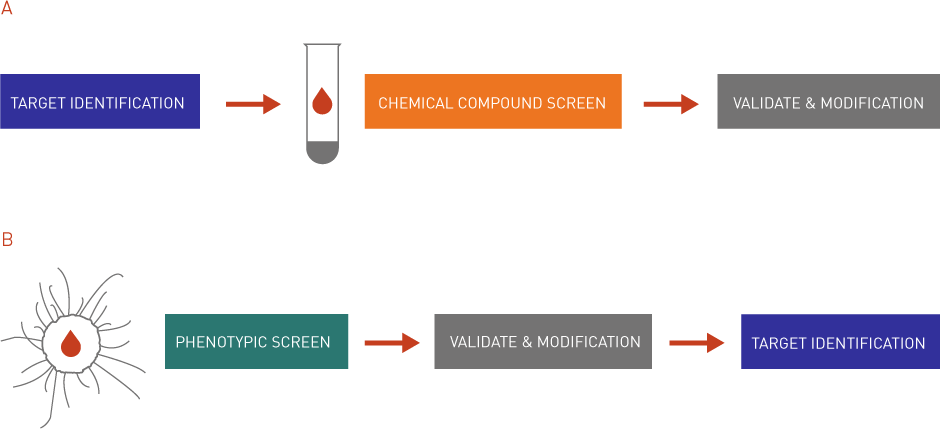

Chemical probes are cell-permeable small molecules that potently inhibit protein function. Modern methods for identifying chemical probes rely on the screening of thousands of chemicals against a target(s) of interest in vitro (Figure 1A).  However, this approach is ineffective, and the number of approved new drugs for treating human diseases has been in steady decline over the past decade.  This is because in target-based screening where the target is pre-defined and drug-target interactions are conducted in vitro, the potency of the chemical in vitro rarely translates to low dosage and high specificity efficacy in vivo.  It also limits our ability to discover other drug targets (1).

Phenotypic screening in model organisms is an alternative approach for discovering new small-molecule therapeutics that address the aforementioned shortfalls of current methodologies (Figure 1B).  Phenotypic screening is a method for the systematic, unbiased, and parallel testing of thousands of molecules for a desired cellular phenotype.  Employing cell-based phenotypic screening addresses two drawbacks specifically associated with conventional target-based screening methods.  Firstly, screening using a cell-based assay directly measures drug potency in a complex cellular environment, which allows for the early assessment of the biological activities and off-target potential of a drug candidate.  Secondly, screening for chemicals that alter the entire cellular pathway bypasses the bias of target pre-selection, leading to the unbiased discovery of new druggable targets (2).

Principles of chemical genetics in drug discovery

Two criteria must be met in a drug discovery process (3).  Firstly, large chemical libraries must be screened to identify biologically active compounds that elicit the desired phenotype.  Secondly, once the compounds are found, the relevant protein targets need to be identified.  Chemical genetics can specifically address these two areas in drug discovery (Figure 2)

Compound screening

In a typical screen to identify bioactive compounds, a diverse library of compounds is applied to the cells that mimic a particular disease state, causing perturbations to different cellular pathways and resulting in phenotypic responses.  Compounds that specifically elicit desired phenotypes will be identified and subjected to follow-up studies to identify their protein targets4.

Target Identification

Genetic screening is an effective strategy for target identification, especially in organisms where whole genome library collections are available. There are three gene-dosage based assays in yeast that are commonly used to identify drug targets. All three assays are unbiased growth-based assays that do not require prior knowledge of a compound’s mechanism of action 3,5.

HaploInsufficiency Profiling (HIP) assay is based on the principle that a decreased dosage of a drug target gene can result in an increase in drug sensitivity (Figure 3A). In a HIP assay, heterozygous deletion mutants are treated with a drug of interest. Strains that exhibit increased sensitivity in the form of growth inhibition will be identified. The HIP assay reveals the direct target as well as other components in the same pathway.

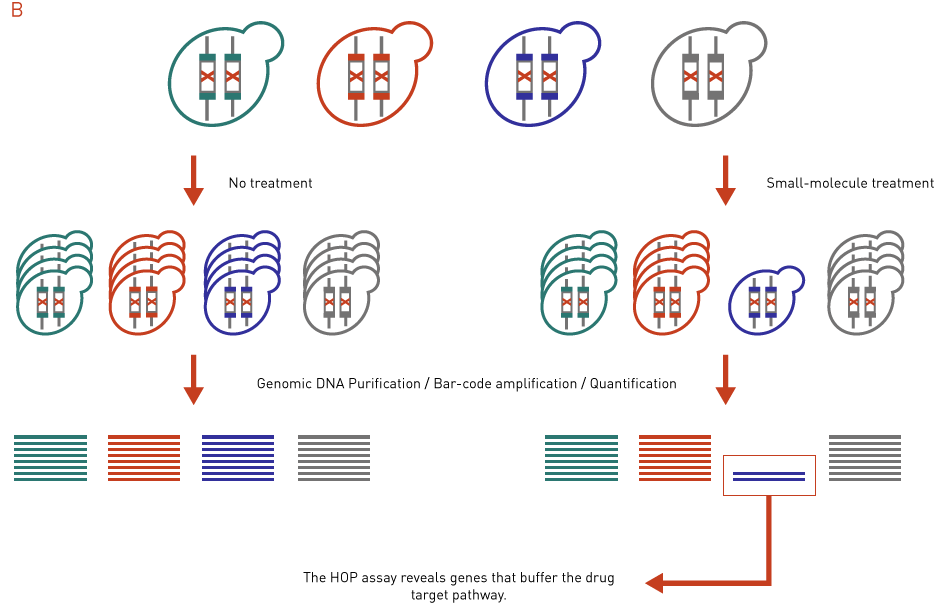

Homozygous Profiling (HOP) assay is similar to the HIP assay except that both copies
of a nonessential gene are deleted (Figure 3B). Instead of identifying a direct target, the
HOP assay often identifies genes that buffer the drug target pathway. This is because
the HOP assay mimics a double deletion mutant in that the second gene disruption is
achieved via compound inhibition. Direct target identification, however, can be inferred
by integrating HOP chemical-genetic profiles with genetic interaction profile. The
chemical-genetic profile of a drug will be similar to the genetic interaction profile of its
target gene.

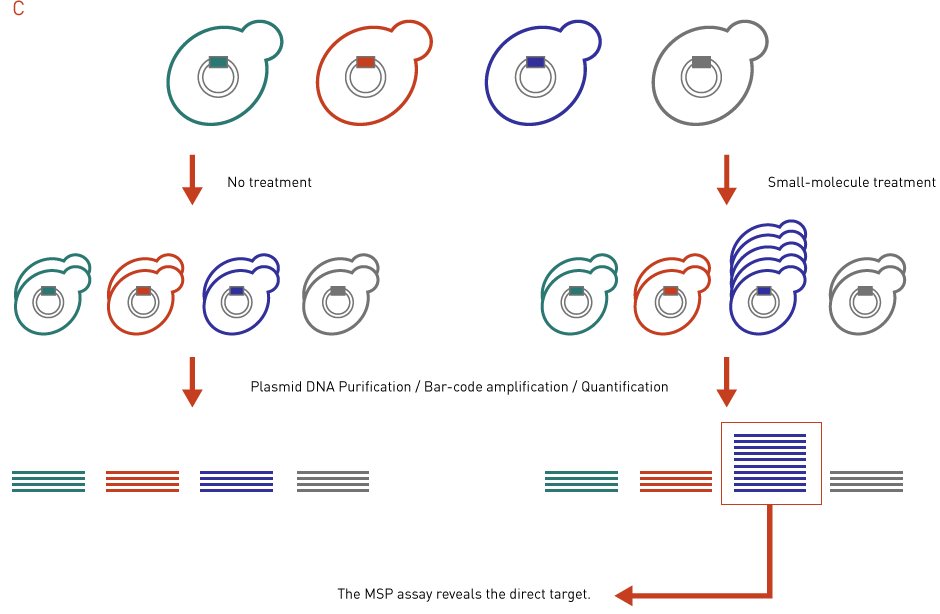

Multicopy suppression profiling (MSP) assay is based on the principle that increased
dosage of a drug target gene can confer resistance to drug-mediated growth inhibition,
essentially a mirror to the HIP assay (Figure 3C). In a MSP assay, strains that contain high-copy overexpression plasmids are treated with a drug of interest, and individuals that exhibit growth advantage in the presence of the drug will be identified. Like the HIP assay, MSP assay often identifies direct target of a drug.

All three gene-dosage-based screening assays are often performed in a single liquid culture using bar-coded strains to assess the competitive growth of the entire collection6. However, these assays can also be performed on solid media using colony size to measure individual colony fitness7

S. Cerevisiae as a Platform for Chemical Genetic Screening and Drug Identification

S. cerevisiae is ideally suited for high-throughput phenotypic screening for several reasons. Firstly, it has a short doubling time and simple growth requirements. Secondly, its genome is the best characterized among eukaryotic models. Thirdly, many core cellular processes in S. cerevisiae, such as cell cycle control, DNA repair and various metabolic pathways, are conserved in humans 8,9. Finally, many laboratories have experience using yeast strains to model disease state in human cells and screen for promising compounds 4.

However, it usually requires a much higher dosage of chemicals to perform genetic screens in yeast than in mammalian cells. This is because yeast has a cell wall, making it hard for some chemicals to enter the cells 10. In addition, yeast has a dynamic chemical defence, which uses efflux pumps that actively transport drugs out of the cells 11,12. Special yeast strains that are mutated with these genes will increase the drug sensitivity of a yeast cell 13.

Library Small Compound Libraries

In a forward chemical genetic screen, it is desirable to screen for a selection of chemicals that cover as much chemical space as possible. However, since the chemical space of all possible chemical structures is extremely large, and the screen itself is compound-intensive and time-consuming, it is very important to pre-select a subset of compounds that are enriched for known active substructures or most likely to accumulate in the organism of interest 14. Many public and private institutes hold large collections of small molecule libraries for drug discovery and chemical genetics screenings 15-19.

Working with Libraries

High-throughput chemical genomics screening can be done quickly and easily using automated robotics, such as the Singer ROTOR+, which can rapidly pin high-density arrays of bacteria and yeast colonies. In addition, the ROTOR+ screening robot provides an automated platform to simultaneously produce multiple experimental replicates.
