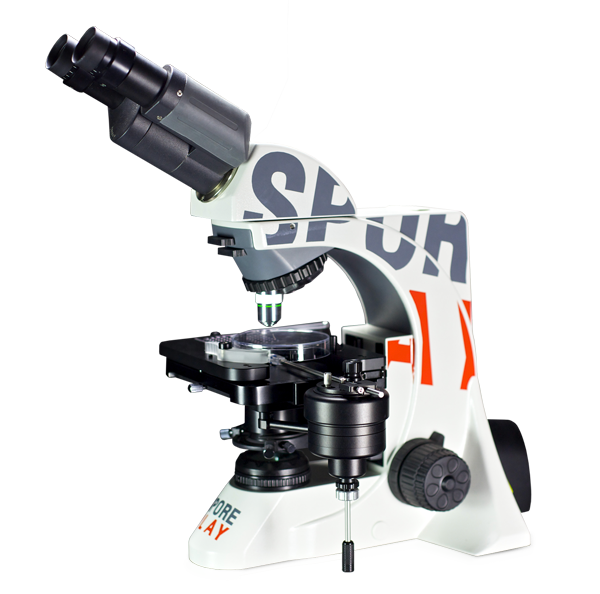

Model: SporePlay+


Product code: SPO-002


Warranty: 1 Year


Monitor: 21.5″, 1080p Full HD, LED-Backlit LCD Monitor Edge-to-edge glass display with anti-glare


Internal PC spec:
2.30GHz Intel 6th Gen Dual Core i3-6100U Processor
-20 ~ 60 °C extend temperature operating
2.5” 32GB MLC SSD (0~70°C) – Can be upgraded to:
128GB / 256GB / 512GB
4GB DDR3 Memory
DC-PWR-MIOe – 9V 36V power module


Power: 110 – 240V AC


Size:
Height: 430 mm
Depth: 375 mm
Width: 240 mm


Weight: 15.2kg


Optical System: X20 LWD objective
x15 wide field eyepieces

Control:
X, Y & Z Axis control from a single joystick
Twist-lock mechanism
Tool holder clamp for quick needle change


Stage:
Z-axis movement 27 mm with a fixed upper limit stop for lens protection
5 mm click stop grid positions
2x 12×4 grids for a total of 96 spores
Choice of inoculum position


Tool Holder: Pinch-release needle replacement function
Tool holder stop with fine control


Focus: Coarse focus with torque adjustment and lock Fine focus with 1 μm minimum increment


Illumination:
Externally mounted lamp house, 6V/30W
Quartz Halogen illumination
In preparation: 3W LED illumination, 6000K and 4500K


Needles Data

Product code: NDL-010


Handmade:
Experts in hand-making Tetrad Dissection Needles for more than thirty years, they contain a light-optimising, 50 um diameter fibre core that is supported by a thicker, taper-ended glass envelope. This unique construction gives the perfect combination of strength and flexibility that gives the needles a very long life.


What’s in the box?
The needles come in boxes of 10, with discounts available if ordering multiple boxes
Carefully engineered for light-optimising transmission.


Easy to handle
Long enough to reach the thinnest agar and
very hard to break.
